Custom Diverging NIR Modules for Remote Sensing, Range Finding & Targeting

Introduction

An industry leader in the Unmanned Aerial System (UAS) market utilized Diode Laser Concepts’ capabilities in design and manufacturing of custom OEM laser modules for active NIR illumination in augmented EO/IR/SWIR imaging airborne platforms.

The Challenge

• Laser-designation payload for day/night targeting functions.
• Compact, lightweight, low current, high optical power, high atmospheric transmission.
• Precisely defocused/divergent optical alignment with custom mounting package.

Our Solution

• 830nm, 50mW or 850nm, 200mW.
• TTL electro-optic functionality.

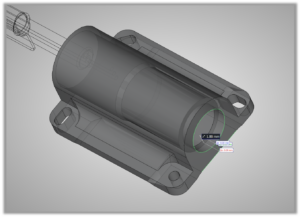

• Compact “unibody” optical package and mounting mechanics.

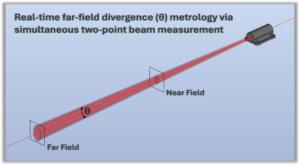

• ± 0.2mrad beam divergence control.

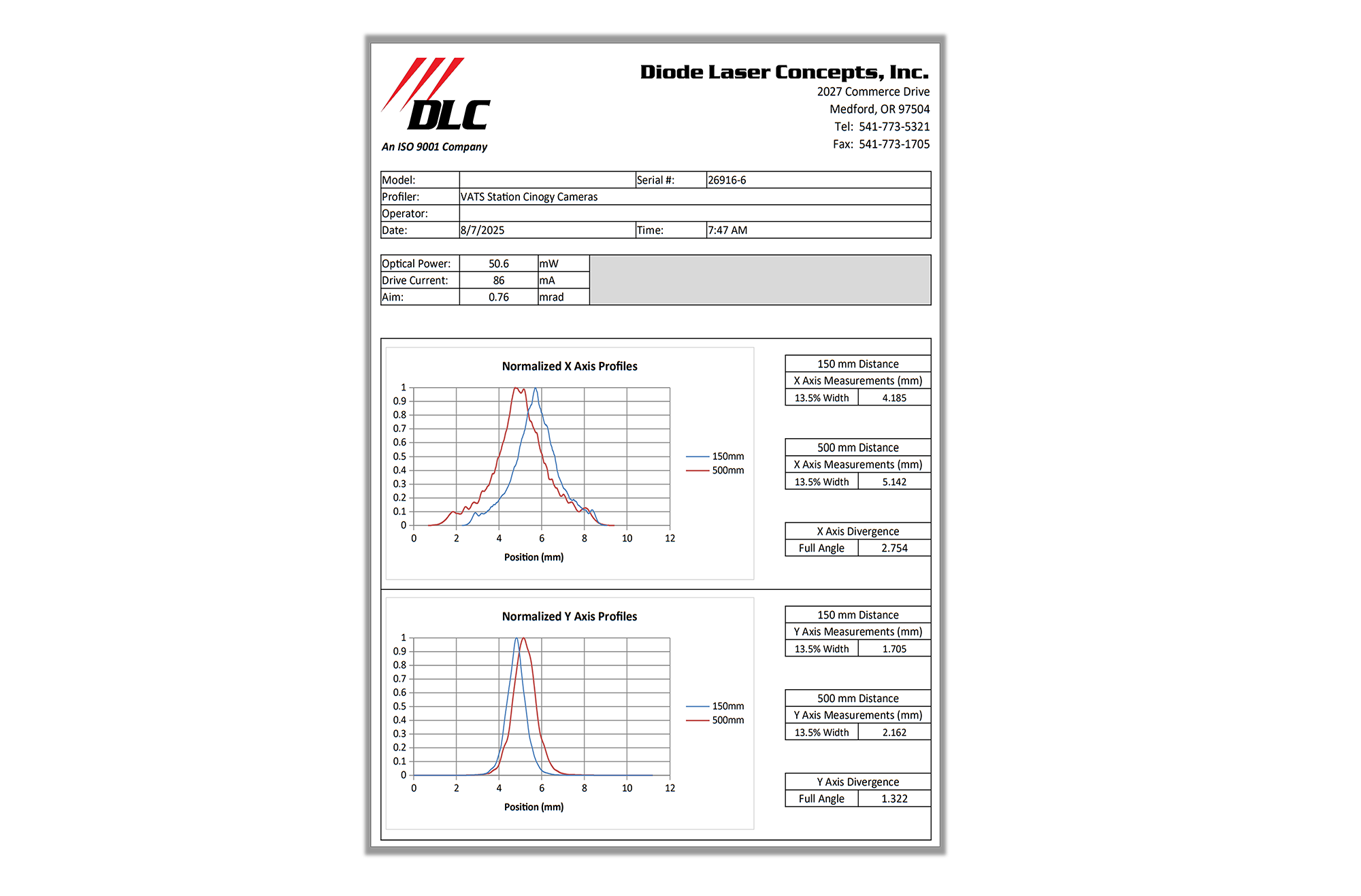

• Optical data sheets provided per unit.

Implementation & Manufacturing

• Collaboration with the customer including site visits, mechanical design, iterative prototyping, and metrology.

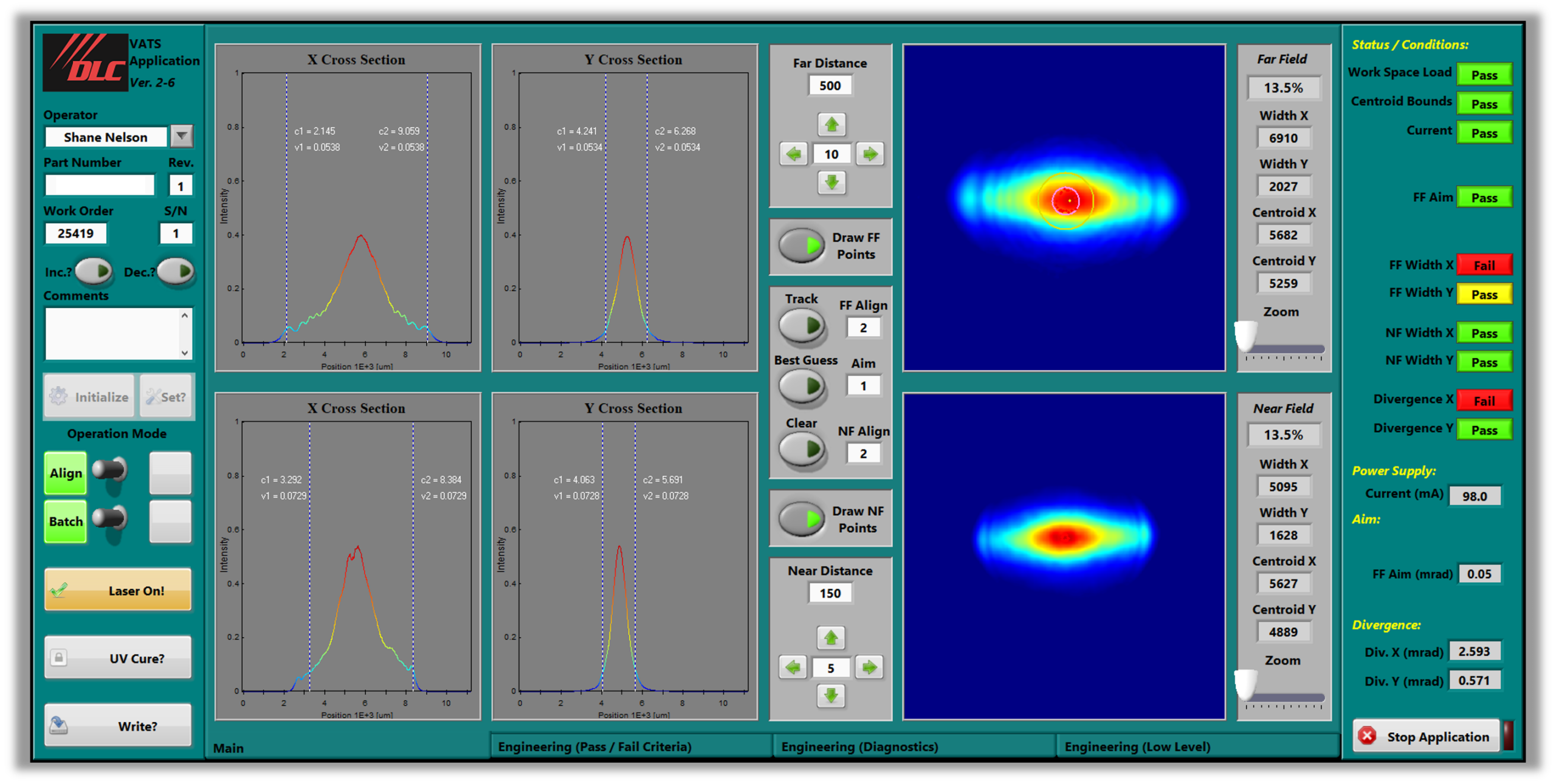

• Custom manufacturing alignment stations for high volume throughput.
• Rigorous environmental testing.
• Multiple product variations covering wide application specific needs.
• Rapid product design and production release timelines.

Why Diode Laser Concepts

• A leading innovator in diode-laser-based photonics, offering tailored solutions from custom laser modules to fully engineered advanced systems.
• Top-tier engineering team with proficiency in physics, optics, mechanics, electronics, and thermal design.
• Uses Design-for-Manufacturing (DFM) decision making throughout a project.
• Advanced manufacturing facilities, processes, and capabilities using custom designed opto-mechanics and metrologies for precision optical alignment and system-level integration.
• Highly collaborative development process ensuring your project success.
• On-time and on-budget in meeting your most demanding specifications.
• Commitment to long-term and world-class customer service.
